Positive Pressure Ventilation (PPV) Fans

From MEFD
Revision as of 00:15, 11 August 2025 by Hunter (talk | contribs) (Created page)
(diff) ← Older revision | Latest revision (diff) | Newer revision → (diff)

In 2025, MEFD move to battery powered positive pressure ventilation (PPV) fans. PPV fans are used to clear smoke and CO from structures. Battery powered PPV fans have advantages over our previous gas powered fans:

  • Easier to start
  • Less maintenance
  • Do not produce their own CO
  • Quieter
  • Higher air movement volume (CFM)

SuperVac V18-BL PPV Fans

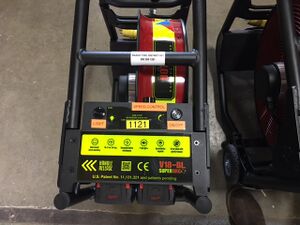

SuperVac V18-BL Controls.jpg

Our current model is the SuperVac V18-BL. We use the Milwaukee M18 batteries. Do NOT use these batteries for any other tools.


The fans have approximately 35 minutes of run time on the batteries and can be run continuously using shore power. Note: plugging in the fan does NOT charge the batteries, they must be put in a battery charger.

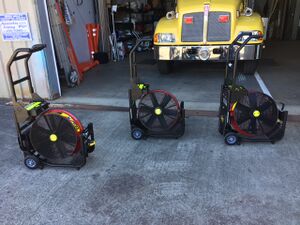

SuperVac V18-BL - 3 Fans.jpg

Setup:

  • 15 feet from door
  • Adjust angle, use front handle to lock fan in place

Power Button Colors:

  • Blue - Starting Up
  • Green - 50% to 100% charge
  • Yellow - 25%-49% charge
  • Red (flashes) - less than 25% charge

Resources:

Intro video from Fultondale Fire Department: https://www.youtube.com/watch?v=UCE0T9gkHlc (Note: we are using the M18 Milwaukee batteries instead of the DeWalt shown in the video).

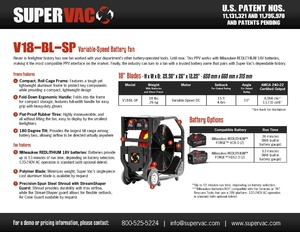

See below (or to the right) for the spec sheet and user manual PDFs.

V18-BL-SP SellSht UPDATED-1224.pdf
